Best Tips About What Is Shimano Junction Box

Unlocking the Secrets of the Shimano Junction Box

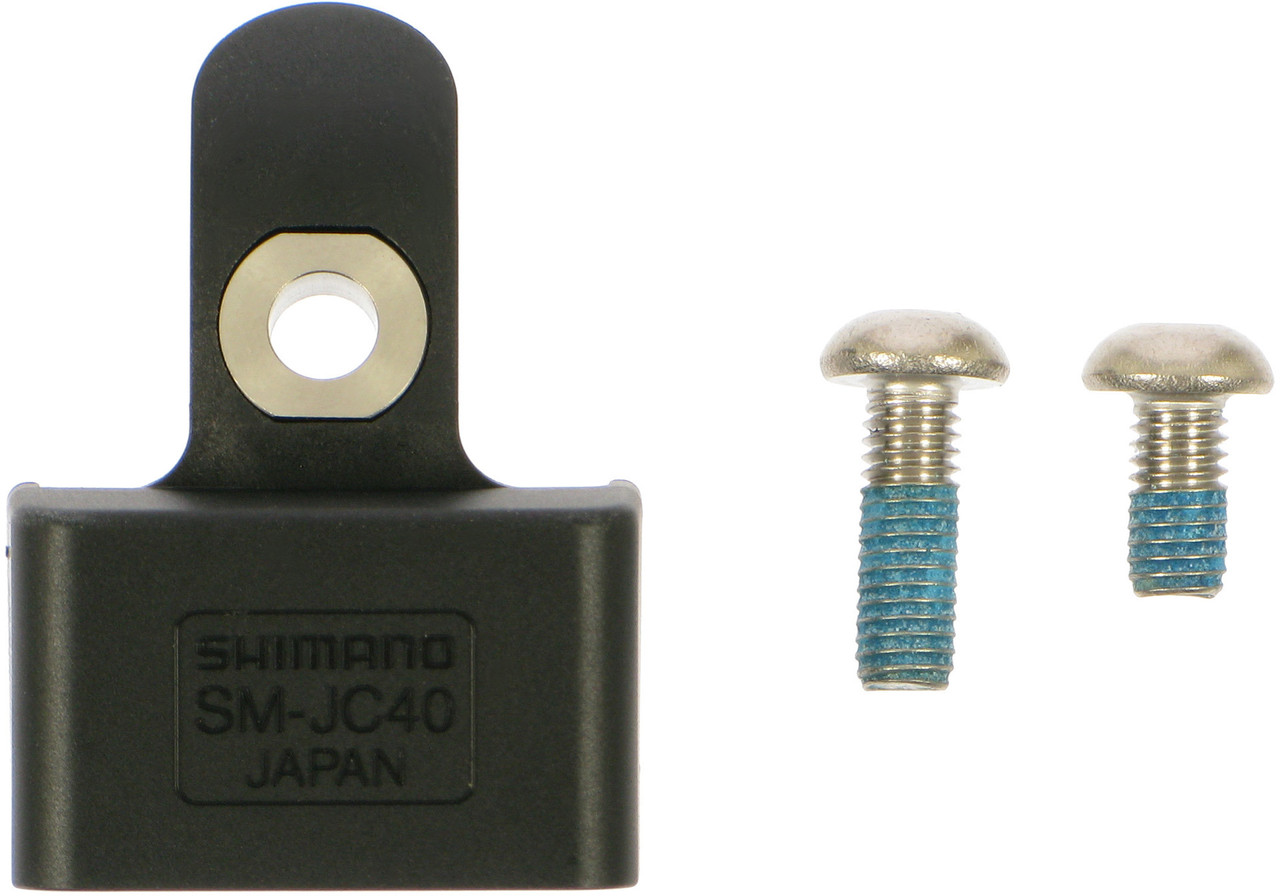

1. What Exactly Is a Shimano Junction Box?

Ever peered at a high-end road bike and noticed a small, unassuming box tucked neatly away? Chances are, you were looking at a Shimano junction box. Think of it as the central nervous system for your bike's electronic shifting system, like Di2 (Digital Integrated Intelligence). It's a little hub that coordinates communication between your shifters, derailleurs, and sometimes even your battery. Without it, your electronic gears would be about as useful as a chocolate teapot.

It might seem like a minor component, but its actually pretty vital. Its the brain that keeps everything working in harmony. It receives signals from your shift levers, processes them, and then sends instructions to the front and rear derailleurs to execute the gear change. Simple in concept, but incredibly intricate in execution.

These boxes come in various shapes and sizes, depending on where they're meant to be installed. Some are designed to be tucked into the handlebar end, while others are hidden away inside the frame. The goal is always the same: to keep things tidy and aerodynamic, all while ensuring reliable performance. Let's be honest, nobody wants exposed wires flapping around in the wind!

And they aren't just for shifting! Some junction boxes also serve as charging ports for your Di2 battery and even provide a visual indication of battery life. Talk about multi-tasking! It's all about providing a seamless and informative riding experience. So next time you see one, give it a little nod of respect; it's doing a lot more than you think.

Deciphering the Different Types of Shimano Junction Boxes

2. A Junction Box for Every Rider (Almost!)

Shimano, in their infinite wisdom, has blessed us with a variety of junction boxes to suit different needs and preferences. One common type is the handlebar-mounted junction box. These are often found on road bikes, allowing for easy access to buttons and charging ports. Theyre typically quite small and sleek, blending seamlessly into the overall aesthetic of the bike. No one wants an ugly box ruining the look of their ride, right?

Another popular option is the in-frame junction box. As the name suggests, these are designed to be hidden away inside the frame, typically near the bottom bracket or in the seat tube. This provides a super-clean look and protects the junction box from the elements. It's like the James Bond of junction boxes — hidden, sophisticated, and always ready for action.

Then there are the wireless units. These take things to the next level by communicating wirelessly with other Di2 components. This simplifies wiring and makes installation even easier. It's almost magical how it all works! Imagine, a bike with no wires. Okay, maybe not no wires, but fewer wires are definitely a win.

Choosing the right junction box depends on your bike, your riding style, and your personal preferences. Consider factors such as ease of access, aesthetics, and compatibility with your other Di2 components. Do a little research, talk to your local bike shop, and find the perfect junction box to complete your electronic shifting setup. You won't regret it! (Unless you accidentally disconnect it while fiddling around. Then you might regret it just a little.)

Why a Shimano Junction Box Matters

3. The Unsung Hero of Electronic Shifting

Okay, weve established that the Shimano junction box is essential for electronic shifting. But its importance goes beyond simply changing gears. It's about creating a more intuitive, efficient, and enjoyable riding experience. Imagine being able to shift gears with the slightest touch, without having to strain your fingers or lose your grip on the handlebars. Thats the power of a well-functioning junction box.

One of the key benefits is improved shifting accuracy. The junction box ensures that the derailleurs move precisely to the correct position, resulting in smooth and reliable gear changes every time. No more clunky shifts or missed gears! It's like having a robot butler handling your shifting duties. (A robot butler who only knows how to shift gears, but still.)

Furthermore, many junction boxes offer customization options. You can program the buttons to perform specific functions, such as shifting multiple gears at once or controlling other accessories. This allows you to tailor your shifting experience to your individual needs and preferences. Want to shift three gears with one click? No problem! The junction box is your personal shifting playground.

And lets not forget about the added convenience. Some junction boxes display information such as battery level and gear position, keeping you informed about the status of your Di2 system. This eliminates any guesswork and allows you to focus on the road ahead. Knowledge is power, especially when it comes to your bike's electronic shifting system. So embrace the junction box and unlock its full potential!

Troubleshooting Common Shimano Junction Box Issues

4. When Things Go Wrong (and How to Fix Them)

Even the most reliable components can sometimes experience hiccups. If you're having trouble with your Shimano junction box, don't panic! There are a few common issues you can troubleshoot yourself before heading to the bike shop. First, check the battery. A dead or low battery is the most frequent culprit behind Di2 malfunctions. Make sure your battery is fully charged and properly connected to the junction box.

Next, inspect the wiring. Ensure that all the wires are securely connected to the junction box and the other Di2 components. Look for any frayed or damaged wires. Sometimes, a simple reconnection or wire replacement can solve the problem. It's like performing minor surgery on your bike, but hopefully less messy.

If the issue persists, try resetting the Di2 system. This can often resolve minor glitches and restore proper functionality. Consult your Shimano Di2 manual for instructions on how to perform a reset. Its usually a relatively simple process that involves pressing a few buttons in a specific sequence. Think of it as giving your Di2 system a gentle nudge in the right direction.

If none of these solutions work, it's time to seek professional help. Take your bike to a qualified bike mechanic who specializes in electronic shifting systems. They have the tools and expertise to diagnose and repair more complex issues. Remember, patience is key! Troubleshooting can be frustrating, but with a little perseverance, you can get your Di2 system back up and running smoothly. Now go forth and conquer those hills!

Extending the Life of Your Shimano Junction Box

5. A Little Care Goes a Long Way

Like any other component on your bike, your Shimano junction box requires some basic care and maintenance to ensure its longevity. Protecting it from the elements is paramount. Avoid exposing it to excessive moisture, dirt, or extreme temperatures. These conditions can damage the internal components and shorten its lifespan. Treat it like a delicate electronic device, because, well, it is!

Regular cleaning is also essential. Wipe down the junction box with a clean, dry cloth to remove any dirt or grime. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish. A gentle wipe-down every now and then is all it takes to keep it looking its best. Think of it as a spa day for your junction box.

When storing your bike, especially during the off-season, consider disconnecting the battery from the junction box. This will prevent the battery from draining and prolong its lifespan. It's a small step that can make a big difference in the long run. And speaking of batteries, always use the correct charger and follow the manufacturer's instructions to avoid damaging the battery or the junction box.

Finally, be mindful of the wiring. Avoid pulling or yanking on the wires, as this can damage the connectors or the wires themselves. When adjusting or servicing your bike, take extra care around the junction box and the associated wiring. A little bit of caution can save you a lot of headaches (and expensive repairs) down the road. With a little love and attention, your Shimano junction box will continue to serve you faithfully for many miles to come.
