What Happens When You Flip the Switch on an LED's Polarity?

1. Understanding LED Basics Before We Reverse

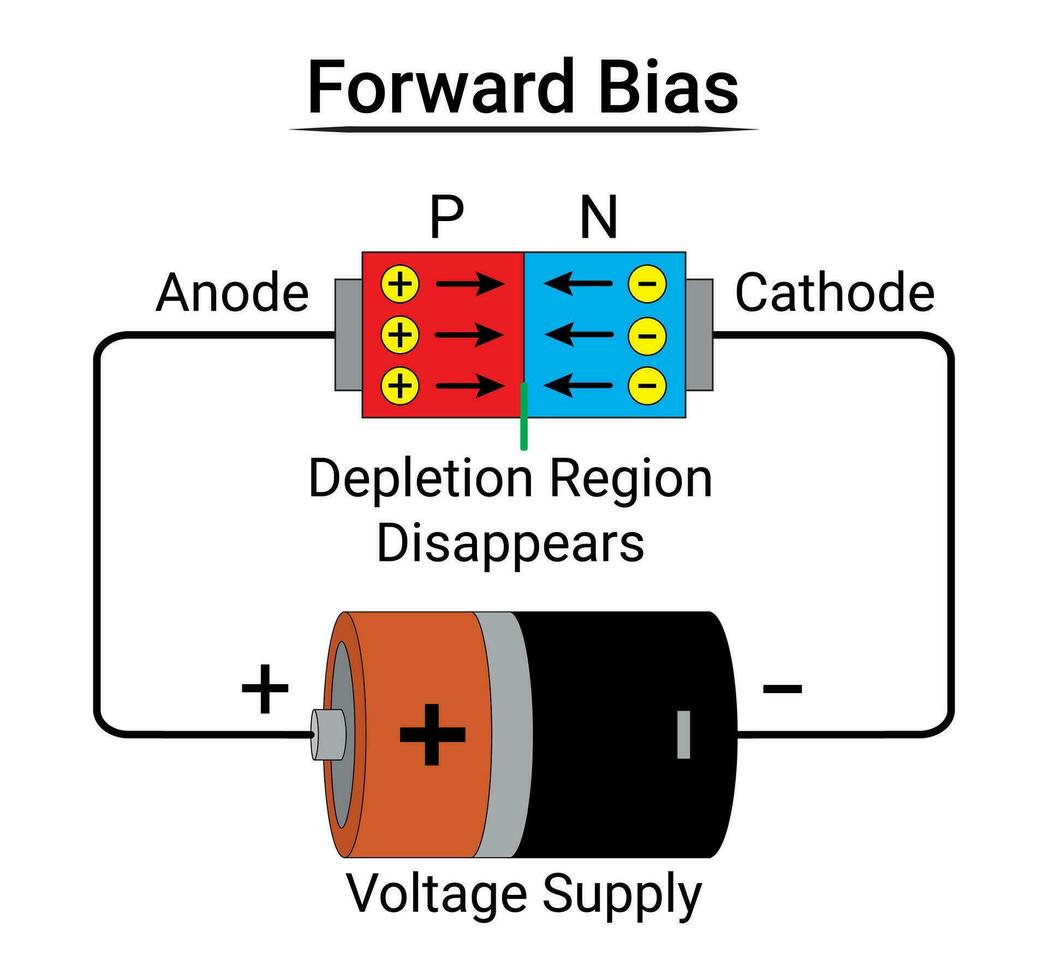

LEDs, those tiny, bright lights that power everything from our phone screens to festive holiday displays, are pretty fascinating little devices. But unlike your average incandescent bulb, they're not exactly forgiving when it comes to how you hook them up. See, LEDs are diodes, which means they're like one-way streets for electricity. They're designed to allow current to flow easily in one direction (forward bias) and block it in the other (reverse bias).

Think of it like a water valve. When you open it correctly (forward bias), water (electricity) flows freely. But try to push the water backward through the valve (reverse bias), and it's designed to stop it. This directional preference is key to how LEDs work — and what happens when we mess with it.

So, before we dive headfirst into the consequences of reverse biasing an LED, it's helpful to grasp the fundamental principles. We're talking about semiconductors, P-N junctions, and the magical emission of photons. But don't worry, we'll keep it light. Essentially, when the LED is correctly oriented, electrons jump across a gap and release energy in the form of light. Its a tiny, controlled explosion of brilliance. Sounds exciting, right?

Consider the LEDs intended use: a reliable, energy-efficient light source. It thrives on consistent, predictable current flow. Disrupt that flow, and you're likely to encounter some undesirable — and potentially damaging — results. Get ready, things are about to get interesting!

Reverse Bias

2. So, What Actually Happens?

Okay, let's get down to brass tacks. What happens when you intentionally (or accidentally, we've all been there) connect an LED in reverse? Well, typically, nothing good. The LED is designed to block current in the reverse direction, and that's precisely what it tries to do. However, just like a dam can only hold back so much water, an LED can only withstand a certain amount of reverse voltage.

If you apply a small reverse voltage, usually less than the "reverse breakdown voltage" specified in the LED's datasheet, the LED will simply block the current. It won't light up, and it'll just sit there like a disgruntled electronic component. No harm, no foul, right? Wrong. Even a small reverse voltage can slowly degrade the LED's performance over time, kind of like constantly slamming a door slowly weakens the hinges.

But crank up the reverse voltage beyond its limit, and things can get much more dramatic. This is where we start talking about reverse breakdown. The LED's internal structure breaks down, allowing a surge of current to flow in the wrong direction. This surge can generate excessive heat, leading to the LED's demise. Think of it as a tiny electrical meltdown. Not exactly the special effect you were hoping for, I presume.

The ultimate outcome depends on a variety of factors, including the LEDs specific design, the magnitude of the reverse voltage, and the duration of the reverse bias. In some cases, the LED might survive, albeit with diminished brightness and lifespan. In other cases, it could be lights out permanently.

The Perils of Reverse Breakdown

3. When Reverse Bias Turns Nasty

Let's zoom in a bit more on the dreaded "reverse breakdown." As mentioned, this is where the LED's internal barrier against reverse current gives way. But what does that actually look like? Imagine the LED's internal structure as a delicate network of electrical pathways. When reverse voltage exceeds the breakdown threshold, these pathways become overwhelmed. It's like a traffic jam of electrons, only much, much hotter.

The excessive heat generated during reverse breakdown can cause permanent damage to the LED's semiconductor material. This damage can manifest as a short circuit, meaning the LED is now conducting electricity in both directions. Or, it could result in an open circuit, rendering the LED completely useless. Either way, your LED is essentially toast.

Its important to understand that reverse breakdown is not an instantaneous event. The amount of time an LED can tolerate reverse bias depends on the magnitude of the voltage and the LED's specific characteristics. A high reverse voltage can cause immediate destruction, while a lower voltage might result in gradual degradation over time.

Furthermore, repeated exposure to reverse bias, even at voltages below the breakdown threshold, can weaken the LED's internal structure and make it more susceptible to failure. It's like slowly chipping away at a brick wall — eventually, it's going to crumble.

Protecting Your LEDs

4. Smart Strategies to Keep Your Lights Shining

So, how do you prevent this reverse-bias catastrophe from befalling your precious LEDs? The good news is that it's usually pretty simple. The first and most crucial step is to double-check the polarity before connecting the LED to a power source. LEDs typically have a longer lead (the anode, or positive terminal) and a shorter lead (the cathode, or negative terminal). There's also often a flat side on the LED's casing that indicates the cathode.

Another effective safeguard is to use a series resistor. A resistor limits the current flowing through the LED, regardless of the polarity. Even if you accidentally connect the LED in reverse, the resistor will prevent excessive current flow and protect the LED from damage (to a certain extent). Its like a buffer, softening the blow of your wiring error.

For more sensitive or critical applications, you can also use a diode in parallel with the LED. This diode should be connected in reverse polarity to the LED. In normal operation (forward bias), the diode does nothing. But if the LED is accidentally reverse-biased, the diode will conduct current, effectively short-circuiting the reverse voltage and protecting the LED.

Finally, always refer to the LED's datasheet for specific voltage and current ratings. Different LEDs have different tolerances, and it's essential to operate them within their specified limits. Don't just assume that all LEDs are created equal — treat them with the respect they deserve.

Frequently Asked Questions (FAQ)

5. Your LED Queries Answered!

Let's tackle some common questions about reverse biasing LEDs:

Q: Will a reverse-biased LED explode?

A: It's unlikely to explode in a literal, Hollywood-style explosion. However, it can fail catastrophically, potentially emitting a puff of smoke or a faint crackling sound. But mostly it just stops working.

Q: Can I use a multimeter to check if an LED is reverse-biased?

A: Yes! Most multimeters have a diode test function. When you connect the multimeter leads to the LED in the correct polarity, it should light up (dimly). If you reverse the leads and it doesn't light up, that's normal. If it does light up in both directions, the LED might be damaged.

Q: I accidentally reverse-biased an LED for a split second. Is it ruined?

A: Probably not! A brief reverse bias is unlikely to cause permanent damage, especially if the voltage was low. But it's always a good idea to test the LED to make sure it's still working properly. And maybe double-check your wiring next time!

Q: Does the type of LED (e.g., SMD, through-hole) affect what happens when reverse biased?

A: Not significantly. The fundamental principle of reverse bias affecting the P-N junction remains the same regardless of the LED's physical package. However, the specific reverse breakdown voltage and tolerance might vary depending on the LED's construction and materials.
